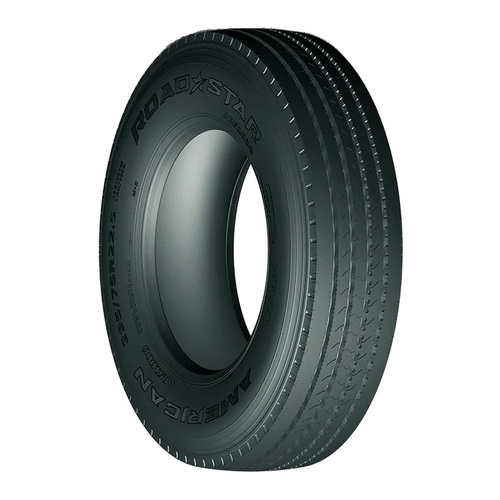

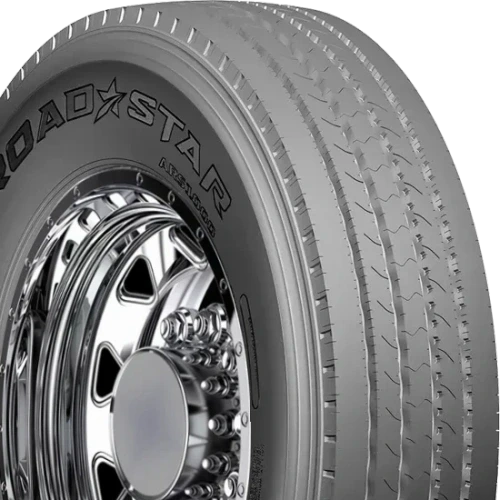

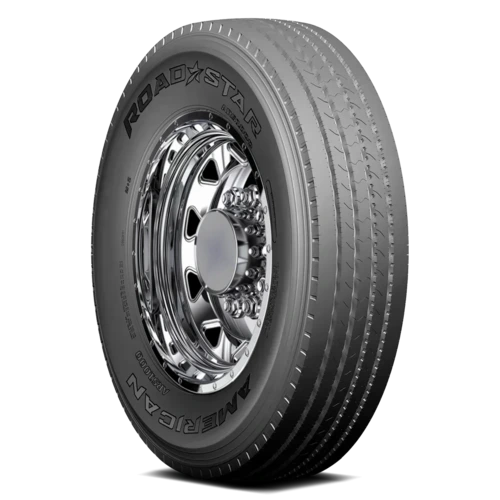

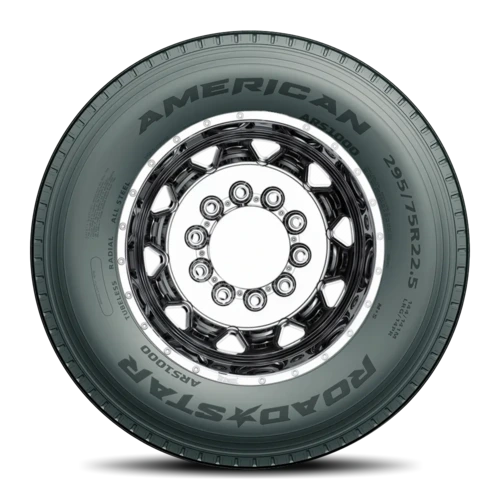

American Road Star ARS1000 11R22.5 H/16PLY

Commercial Truck - All Position
Commercial All Position

Rims Not Included

easy test score

7.8 Great

Availability

In Stock

Per Tire:

$382.60

Lightning Savings

Was $478.25

$117.56

Estimated Delivery

Shipping Cost

Total

See full specs

Authorized distributor of

Local installation

1,000s of locations

US based customer support

Se habla español

About the Manufacturer:

American Road Star, with its brand first used in commerce in 2005 in the USA, is a recognized name in the specialty tire market, focusing on trailer and recreational vehicle applications. Operating primarily in North America, American Road Star is known for providing reliable and affordable tire solutions, offering durability and appropriate load support for travel trailers, RVs, and various utility trailers.

Chat

Start chat

Call

(855) 770-3279

We can help! Our trained experts have years of tire fitment experience and are available to answer questions.

Specifications

Specs

Value

Description

Sidewall

Not Available

Describes the sidewall appearance. Examples: BSW= Black Side Wall, WSW = White Side Wall, OWL = Outlined White Letters.

Load Index

146/143

The load index (LI) is a 2- or 3-digit number that correlates to the maximum amount of weight the tire can carry. For example, a tire with a load index of 87 indicates that the tire can carry a maximum load of 1,201 lbs. In this particularly example, 4 tires (each with a load index of 87) can carry a maximum of 4,804 lbs. Refer to your vehicle owner's manual for the recommended minimum load index.

Speed Rating
A guide to buying tires

Speed rating (SR) indicates the maximum speed the tire can achieve. Higher speed ratings are typically associated with better handling capabilities. Refer to your vehicle owner's manual for the recommended minimum speed rating.

Load Range/Ply Rating
Types of tires

H/16PLY

Ply rating, more commonly referred to as load range, represents the strength and durability of the tire. Higher ratings may indicate your tires can handle heavier loads.

UTQG

Not Available

To help consumers evaluate their tires, the U.S. National Highway Traffic Safety Administration (NHTSA) created the Uniform Tire Quality Grading System (UTQG). The UTQG rates tires are rated on their tread-wear, traction performance, and temperature resistance. The grade for each of these can be found on the sidewall of your tire (except for winter tires and certain light truck tires). Click here to learn more.

Max Single Load(lbs)

6610

The maximum load this tire will support. Remember to multiply this number by the number of tires installed on your vehicle to get the maximum carrying capacity. This number is directly related to the Load Index.

Max Single Air Pressure(PSI)

119

The maximum air pressure this tire will support. This does not represent the amount of air pressure your tires should have at all times. Consult with your owner's manual to determine the best air pressure you should use for your vehicle.

Tread Depth

17.6

The amount of tread on the tire. Once the tire is worn to 2/32nds, it is considered fully used and should be replaced at that time. Most tires will have tire indicators in the grooves of the tire to help you determine when the tires are worn down to 2/32nds.

Tread Design

Nondirectional

The pattern of the grooves, lugs, voids, and sipes on a tire's surface. This design affects the tire's traction, handling, and noise characteristics. Common types include symmetrical (uniform pattern across the tire), asymmetrical (different patterns on the inside and outside for varied road conditions), and directional (designed to rotate in one direction for improved wet traction and hydroplaning resistance).

Rim Width Range

7.5-8.2

The approved wheel rim width range this tire will support.

Measured Rim Width

8.2

The recommended wheel width as recommended by the tire manufacturer to get the best wear us performance for this tire.

Section Width

10.9

The measurement from sidewall to sidewall.

Tread Width

Not Available

The measurement from one side of the tread to the other side of the tread.

Overall Diameter

41.4

The height of the tire when fully inflated.

Manufacturer Part Number

ARS1K004

Manufacturer part number (sku)

Financing

You can pre-qualify to finance your tires, or you can simply choose Affirm at check-out. Fill out your information and choose the monthly payment that works best for you!

Select 3, 6 or 12 monthly payments, with rates from 10% - 36% APR. 18 months financing available for orders over $1000.00

Checking your eligibility won't affect your credit. You will receive an immediate answer from Affirm.

Affirm has no hidden fees or costs and is completely secure.
Quick and easy, real tire financing, real fast! You can apply in advance and know you can shop for tires when you are ready.

To learn more visit Buy With Affirm or read their convenient Affirm FAQ's. All credit decisions are made by Affirm.

To contact Affirm regarding your account, please call 1-855-423-3729.

No hidden fees

Affirm has no hidden fees or costs and is completely secure

Flexible

You choose the payment schedule that works for you

Quick and easy

Fill out your information and get a real-time decision

Pay over time

Choose the payment plan that works best for you

Learn more about Affirm tire financing options

No Credit? No problem!

Lease your tires with Katapult!

With a small down payment, and easy payments you can lease your tires. Payments are coordinated with your payday. Read more here about how Katapult works.

No credit required

Simple initial payment

No late fees ever

Payoff early is desired

Learn more about Katapult lease-to-own tire financing

Size Details

Size	Load Index/ Speed index	UTQG	Load Range/Ply Rating	Overall Diameter	Section Width	Rim Width Min	Rim Width Max	Rim Width Meas	Tread Depth (in)	Max Single Air Pressure (PSI)	Max Single Load (lbs)	Max Dual Air Pressure (PSI)	Max Dual Load (lbs)	MFG #
11R22.5	146/143M	-	H/16PLY	41.4	10.9	7.5	8.2	8.2	17.6	119	6610	119	6610	ARS1K004
11R22.5	144/142M	-	G/14PLY	41.4	10.9	7.5	8.2	8.2	17.6	105	6175	105	5840	ARS1K003
11R24.5	146/143M	-	G/14PLY	43.4	10.9	7.5	8.2	8.2	17.6	105	6610	105	6005	ARS1K005
11R24.5	149/146M	-	H/16PLY	43.4	10.9	7.5	8.2	8.2	17.6	119	7160	119	6610	ARS1K006
225/70R19.5	128/126M	-	G/14PLY	31.9	8.8	6.0	6.7	6.7	17.6	110	3970	110	3970	ARS1K007
225/70R19.5	129/128M	-	H/16PLY	31.9	8.8	6.0	6.7	6.7	17.6	119	4190	119	3970	ARS1K008
245/70R19.5	133/131M	-	G/14PLY	33.0	9.7	6.7	7.5	7.5	17.6	110	4540	110	4540	ARS1K009
245/70R19.5	135/133M	-	H/16PLY	33.0	9.7	6.7	7.5	7.5	17.6	119	4805	119	4540	ARS1K010
255/70R22.5	140/137M	-	H/16PLY	36.6	10.0	6.7	7.5	7.5	17.6	119	5510	119	5510	ARS1K011
295/75R22.5	146/143M	-	H/16PLY	39.9	11.7	8.2	9.0	9.0	17.6	119	6610	119	6610	ARS1K002
295/75R22.5	144/141M	-	G/14PLY	39.9	11.7	8.2	9.0	9.0	17.6	110	6175	110	5675	ARS1K001
