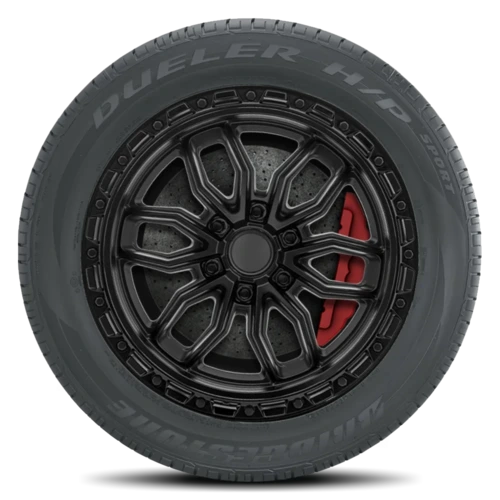

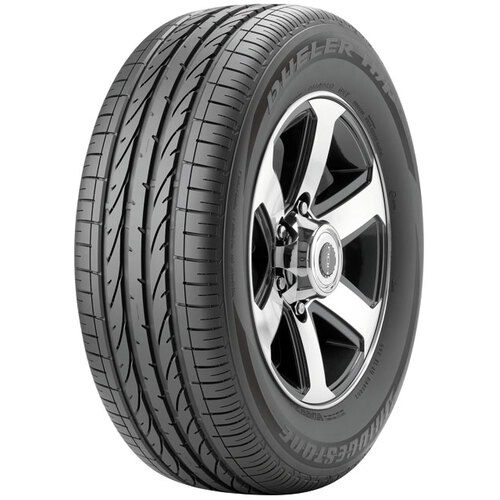

Bridgestone Dueler H/P Sport RFT 265/45R20 104Y BSW Tires

135686 Bridgestone Dueler H/P Sport RFT 265/45R20 104Y BSW Tires
Rims Not Included
Per Tire:
Estimated Delivery
tire tooltip

Affirm FinancingLoading


    5.0/5 (1 reviews)


    • MFG: 135686
    • UTQG: 300AA
    • Availability:
      In Stock
    tire tooltip Price Match: Click Here
    This listing is for new Bridgestone Dueler H/P Sport RFT 265/45R20 104Y BSW Tires. Manufacturer part number: 135686. Specially developed for sport trucks and SUVs, the Dueler H/P Sport RFT is constructed for high performance in both wet and dry weather. With a special rubber compound containing higher levels of silica, it provides especially great performance for rain-slicked roads. With a wide center rip, shoulder blocks, and straight groove, you'll feel the difference when it comes to control and cornering.
    Size Load Index/ Speed index UTQG Ply Rating Overall Diameter Section Width Rim Width Min Rim Width Max Rim Width Meas Tread Depth (in) Max Single Air Pressure (PSI) Max Single Load (lbs) Max Dual Air Pressure (PSI) Max Dual Load (lbs) MFG #
    205/55R17 91V 300AA - 25.9 9.5 5.5 7.5 6.5 10.0 51 1356 - - 007957
    225/45R18 91V 300AA - 25.9 8.9 7.0 8.5 7.5 9.0 51 1356 - - 007974
    255/50R19 107V 300AA - 29.2 10.4 7.0 9.0 8.0 10.0 50 2149 - - 090075
    255/50R19 107W 300AA - 29.2 10.4 7.0 9.0 8.0 10.0 50 2149 - - 058285
    265/45R20 104Y 300AA - 29.37 10.47 8.5 10.0 9.0 11.0 - - - - 135686
    275/40R20 106W 300AA - 28.66 10.9 9.0 11.0 9.5 11.0 50 2094 - - 112243
    275/40R20 106Y 300AA - 28.66 10.9 9.0 11.0 9.5 11.0 50 2094 - - 112991
    315/35R20 110W 300AA - 28.66 12.6 10.5 12.5 11.0 11.0 50 2337 - - 112260
    315/35R20 110Y 300AA - 28.66 12.6 10.5 12.5 11.0 12.0 50 2337 - - 113008
    255/50R19 103W 300AA - 29.09 10.43 7.0 9.0 8.0 11.0 - - - - 135703
    285/45R19 111V 300AA - 29.09 11.22 9.0 10.5 9.5 10.0 50 2403 - - 090092
    285/45R19 111W 300AA - 29.09 11.2 9.0 10.5 9.5 10.0 50 2403 - - 058302
    Specs: Value: Description:
    Sidewall BSW
    This describes the sidewall appearance. Examples include Black Sidewall, White Sidewall, and White Letters.
    Load Index 104
    The load index (LI) is a 2 or 3 digit number that corrolates to the maximum amount of weight the tire can carry. For example, a tire with a load index of 87 indicates that the tire can carry a maximim load of 1,201 lbs. In the case of our example the 87 identifies the tires ability to carry a maximum of 1,201 lbs. So 4 tires will carry a maximum of 4,804 lbs. Refer to your vehicle owner's manual for the recommended minimim Load Index. It is not recommended to install tires with a lower Load Index. By doing so, this could cause your tires to be overloaded thus potentially causing a blowout.
    Speed Rating Y
    Speed Ratings (SR) are based on laboratory tests and indicates the maximum speed the tire can achieve. These tests are based on limited time trials. Higher speed rating tires typically will yield better handling capabilities, but may often result in lower mileage. Refer to your vehicle owner's manual for the recommended minimum Speed Rating. It is not recommended to install a tire with a lower speed rating as it could affect the handling of your vehicle. It is important to note that speed ratings only apply to tires that have not been damaged, altered, under-inflated or overloaded. Additionally, most tire manufacturers maintain that a tire that has been cut or punctured no longer retains the tire manufacturer's original speed rating, even after being repaired because the tire manufacturer can't control the quality of the repair.
    Ply Rating Not Available
    Ply Rating is related to the max load capacity. This value can be defined with a letter or number. The higher the number/letter, the higher the load capacity.
    UTQG 300AA
    To help consumers evaluate their tires, the U.S. National Highway Traffic Safety Administration (NHTSA) created the Uniform Tire Quality Grading System (UTQG). The UTQG rates tires are rated on their tread-wear, traction performance, and temperature resistance. The grade for each of these can be found on the sidewall of your tire (except for winter tires and certain light truck tires). Click here for more information.
    Max Single Load(lbs) Not Available The maximum load this tire will support. Remember to multiply this number by the number of tires installed on your vehicle to get the maximum carrying capacity. This number is directly related to the Load Index.
    Max Single Air Pressure(PSI) Not Available The maximum air pressure this tire will support. This does not represent the amount of air pressure your tires should have at all times. Consult with your owner's manual to determine the best air pressure you should use for your vehicle.
    Tread Depth 11.0 The amount of tread on the tire. Once the tire is worn to 2/32nds, it is considered fully used and should be replaced at that time. Most tires will have tire indicators in the grooves of the tire to help you determine when the tires are worn down to 2/32nds.
    Tread Design Asymmetrical
    Nondirectional - most common, same tread pattern on inside & outside of the tire. Can be rotated to all four corners of vehicle.
    Asymmetrical - tread pattern is different on the inside to the outside of the tire, and must be mounted properly. Can be rotated to all four corners of the vehicle.
    Directional tires - roll in only one direction, must be mounted properly. Once mounted they must remain on the same side of the vehicle, and only be rotated front to rear.
    Rim Width Range 8.5-10.0 The approved wheel rim width range this tire will support.
    Measured Rim Width 9.0 The recommended wheel width as recommended by the tire manufacturer to get the best wear us performance for this tire.
    Section Width 10.47 The measurement from sidewall to sidewall.
    Tread Width Not Available The measurement from one side of the tread to the other side of the tread.
    Overall Diameter 29.37 The height of the tire when fully inflated.
    Manufacturer Part Number 135686 Manufacturer part number (sku)
